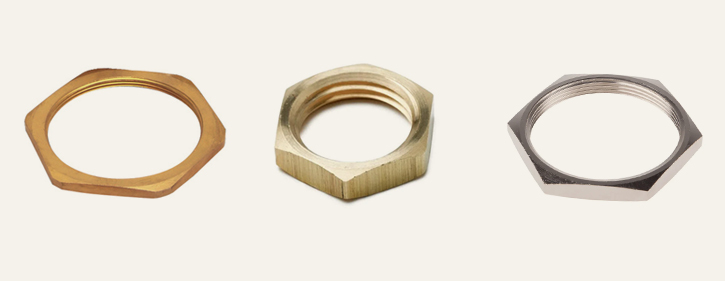

Brass Lock Nut
Brass Lock Nut is generally used to secure a cable gland, reducer, and adaptor in position at the equipment. Brass Lock nuts are widely used in electrical installation due to low corrosion effect.
| Size : | In Metric M16 to M90, In NPT ½” to 3 1/2” and In PG 7 to PG48 |
| Material : | Brass BS2874 |
| Optional : |
Brass Lock Nut also available in Nickle, Zinc Plating, chrome Plating. |
| Note : | Metric Lock Nut also available in Mild steel. Mild Steels are used in dry indoor or outdoor application where humidity is very low. Mild steel are very cheaper compare to brass. Mild steel lock Nuts are available in Zinc or Nickle Plating. |

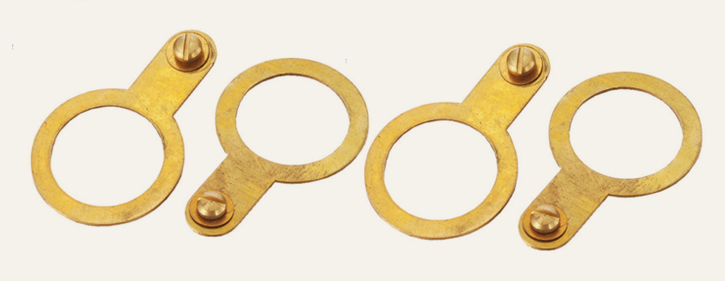

Earth Tags
| Size : | M20 to M90 and ½ NPT to 3” NPT |
| Material : | Brass BS2870 |
| Application : |
Earth Tags are used between Cable gland entry and equipment to provide earth bound connection. Earth Tag produces earth bound connection for electricity continuation. |
| Optional : | Earth Tags are also available in different plating like Nickle, Chrome, Tin. We are also able to supply earth tag with screw and washer. |

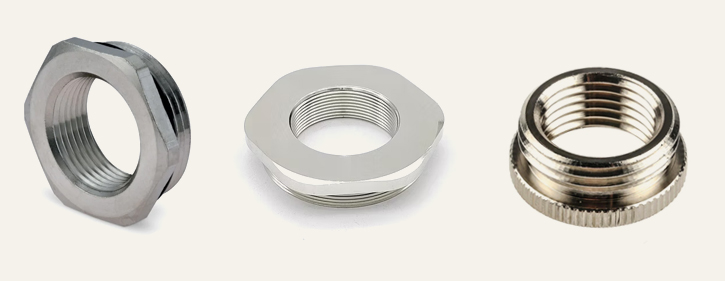

Reducer
We manufacture all kind of reducers for industrial and hazardous area application which provide effectiveness connection between cable entry devices and equipment having dis-similar thread. Reducer are designed to reduce dissimilar thread.
| Size : | 1″ X 3/4″, 1 1/4″ X 1″, 1 1/2″ x 1 1/4″, 2" X 1 1/2″, 2 1/2″ X 2″, 3″ X 2 1/2″ |
| Material : | Brass (IS-319)Standard |
| Threads : |
BSC – Standard (PG / Metric / NPT / BSP also available) |
| Type : | Round Reducer, Hex Reducer, Enlarging Reducer |

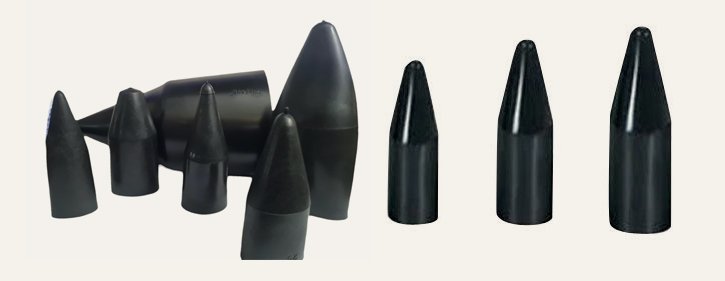

PVC Shrouds
| Application : | Minimises the risk of dirt or foreign substances gathering on the cable gland body and / or point of cable to the gland interface |
| Material : | PVC DIP moulded (Black) |
| Operating Temperature : |
PVC DIP moulded -200 C to +1000 C Injection moulded -200 C to +800 C |
| Function : | For all types of gland applications to provide additional protection & enhances the IP rating of the gland termination. |

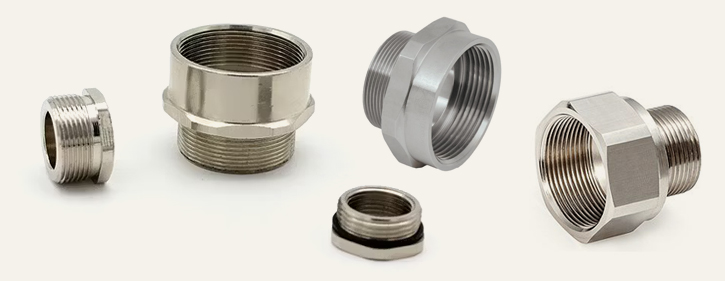

Adaptor
We offer a range of adaptor for industrial and hazardous area application which provide effectiveness connection between cable entry devices and equipment having dis-similar thread. Adaptors are used where the thread size of the cable gland or connection device is larger than, or of an equivalent size, to the entry thread of the enclosure.
| Type : | Round Adaptors, Hex Adaptors |
| Material : | Brass (IS-319)Standard |
| Threads : |
Nickle Plated – Standard (Chrome also available) |
| Application : | Used in normal climatic condition. |

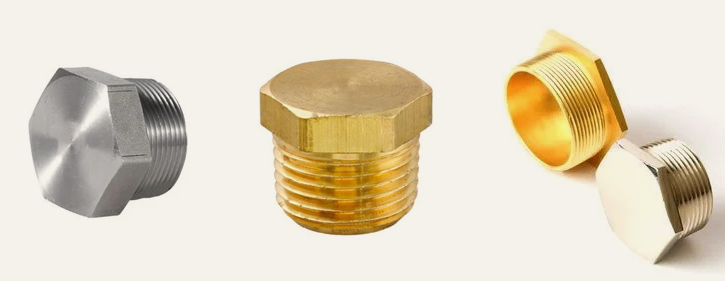

Stop Plugs
Stop Plug are designed to sealing or close any unused entries in electrical enclosures, equipment and junction boxes, etc. Stop Plug are always used to with ring to seal properly. Stop plug are also used for maintain integrity of enclosure and IP rating of equipment. Stop Plug are generally available in Brass, Nickel Plated Brass, Mild Steel and Nylon.
| Type : | Hex Plug, Slotted Round Type Plug, Collar Type Plug, Allen Key Type Plug |
| Material : | Brass (IS-319)Standard |
| Threads : |
BSC - Standard (PG / Metric / NPT / BSP also available) |
| Size : | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″ |
